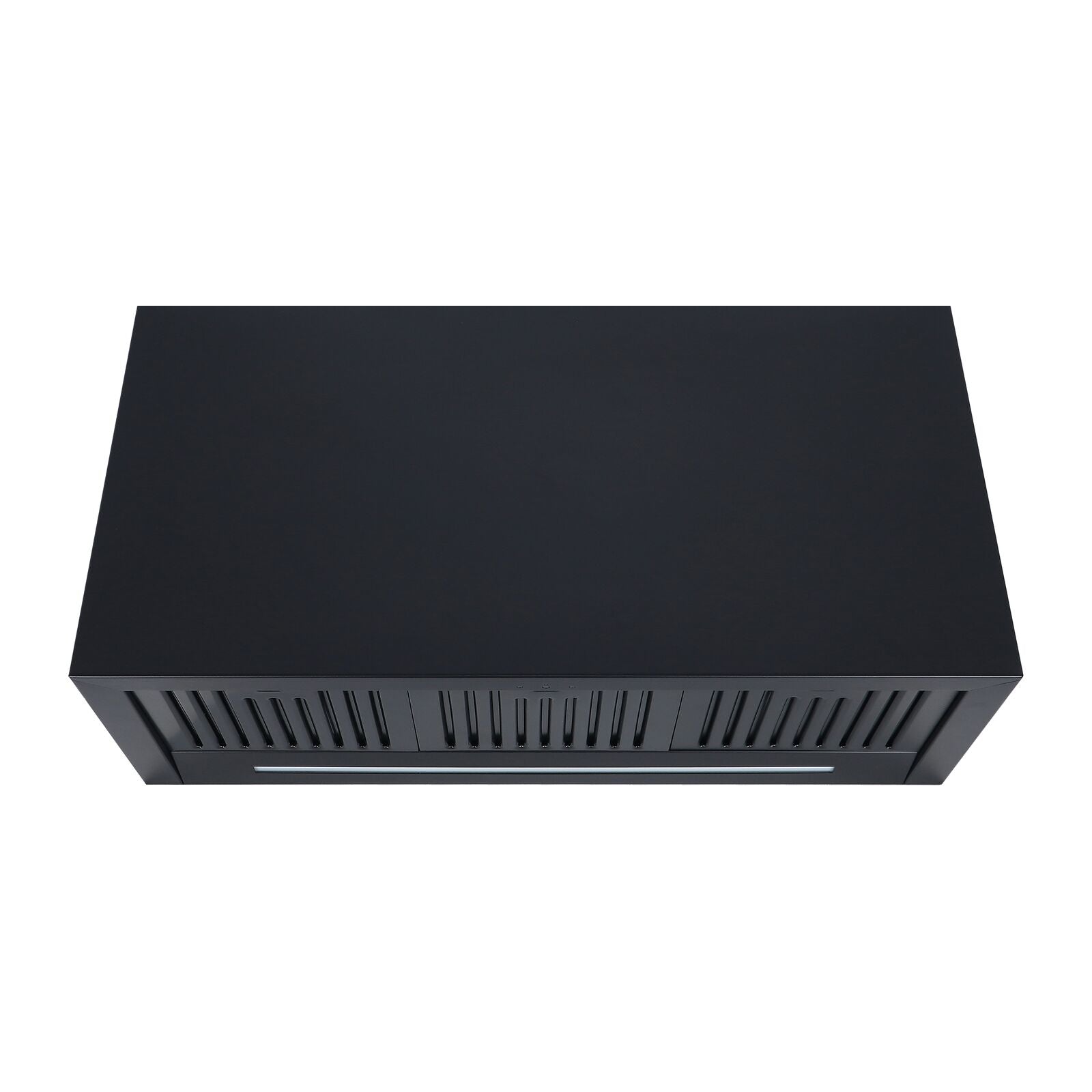

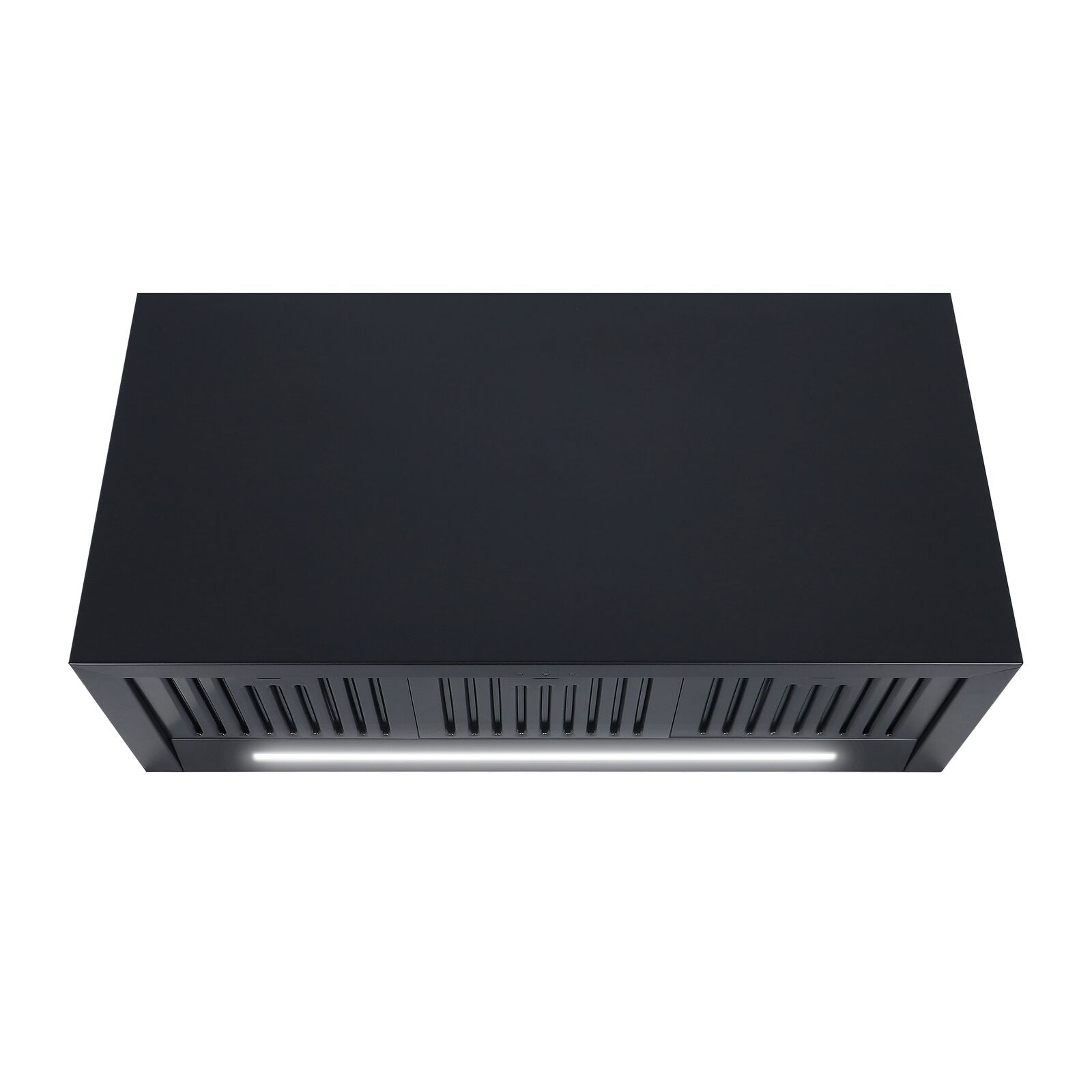

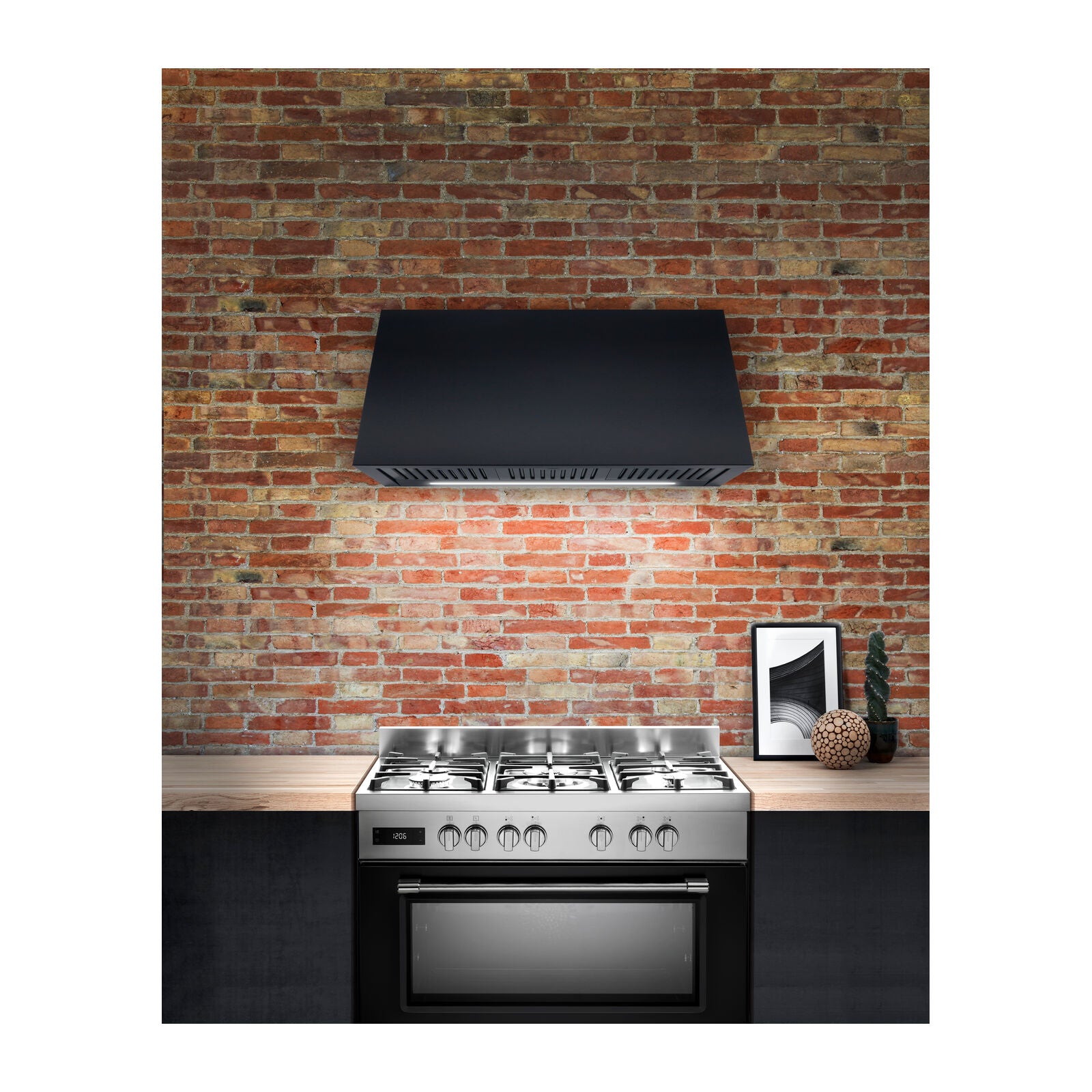

Witt Phantom 90 BN Wall hanging hood Black
  • Witt Phantom 90 BN Wall hanging hood Black
  • Witt Phantom 90 BN Wall hanging hood Black
  • Witt Phantom 90 BN Wall hanging hood Black
Witt Phantom 90 BN Wall hanging hood Black

Witt Phantom 90 BN Wall hanging hood Black

€1.799,00
4.4 out of 5 stars on ★ Trustpilot
Description
Functions & specifications
4
40,0 × 90,0 × 46,0 cm (L×W×H)
19,0 kg

Functions

  • App-name: None
  • Wi-Fi: No
  • Compatible Operative System: None
  • Bluetooth: No
  • No. of charcoal filter: 2
  • No. of lights: 1 pcs. 4W
  • Auto-off: No
  • Dynamic light: Yes
  • Dimmable light: Yes
  • Celvin (°K): 2950-6200
  • Type of light: LED
  • Shape of light: Stripe
  • Type of grease filter: Baffle filter
  • High performance filter ID: Longe life kassette filter (EXCL.)
  • Charcoal filter ID: D180
  • Plasma filter ID: Not possible
  • Indicator for grease filter cleaning: No
  • Charcoal filter included: No
  • Timer: Yes
  • Type of ventilation: Combined
  • No. of speeds: 4
  • Child safety: No

Design and placing

  • Control panel: Notouch and remote control
  • Outlet size mm: Ø150
  • Motor location: Internal
  • Turnable outlet: Yes
  • Telescopic chimney: No
  • Display type: None
  • No. of lights: 1 pcs. 4W
  • Type of light: LED
  • Shape of light: Stripe

Capacity and consumption

  • Energy class: A++
  • Energy consumption year (kWh): 28,6
  • Fluid Dynamic efficiency: 40
  • Fluid Dynamic efficiency class: A
  • Light efficiency: 17
  • Light efficiency class: C
  • Grease filtering efficiency: 80
  • Grease filtering efficiency class: C
  • Capacity max (m³/h): 470
  • Sound level max dB(A): 59
  • Capacity min (m³/h): 210
  • Capacity boost (m³/h): 715
  • Sound level min dB(A): 43
  • Sound level boost dB(A): 69
  • Energy consumption - off: N/A
  • Energy consumption - standby: N/A
  • Energy efficiency index (EEI): N/A
  • Power (W): 164
  • Amperes (A): 1,2
  • Voltage (V): 230
  • Nominal frequency: 50 Hz
  • Requires technician: Yes
  • Cable length: 200cm
  • Type of grease filter: 3-layer Aluminum
  • Charcoal filter included: No
  • No. of charcoal filters: 2
  • Charcoal filter ID: D180
  • High performance filter ID: Not possible
  • Plasma filter ID: 800R
  • Celvin (°K): 4000
  • Light (W): 4

Content in the box

  • Hood
  • manual
  • energy label
  • remote control
  • screws.

User manual

Download

Technical drawing

Download

Product data

Brand: Witt
SKU: 21191128
EAN: 5707582011275
Witt Phantom 90 BN Wall hanging hood Black

"Witt Phantom 90 BN Wall hanging hood Black"
